Fully Automatic Linear Knife Sharpener

Fully Automatic Linear Knife Sharpener

Size Of The Magnet Table: Width*Length 130*1700mm
The Grinding Head Longitudinal Shift: Maximum Stroke    1900mm
Moving Speed:0-20m/Min
Maximum Size Of Working Piece: 150mm
Main Grinding Head: Power 4Kw
Longitudinal Movement Motor: Power1.0Kw
Rapid Rise And Fall Motor    Power: 0.4Kw
Cooling Pump Of The Wheel: Lift 8m, Flux 100L/Min

A-A+
Description Inquire

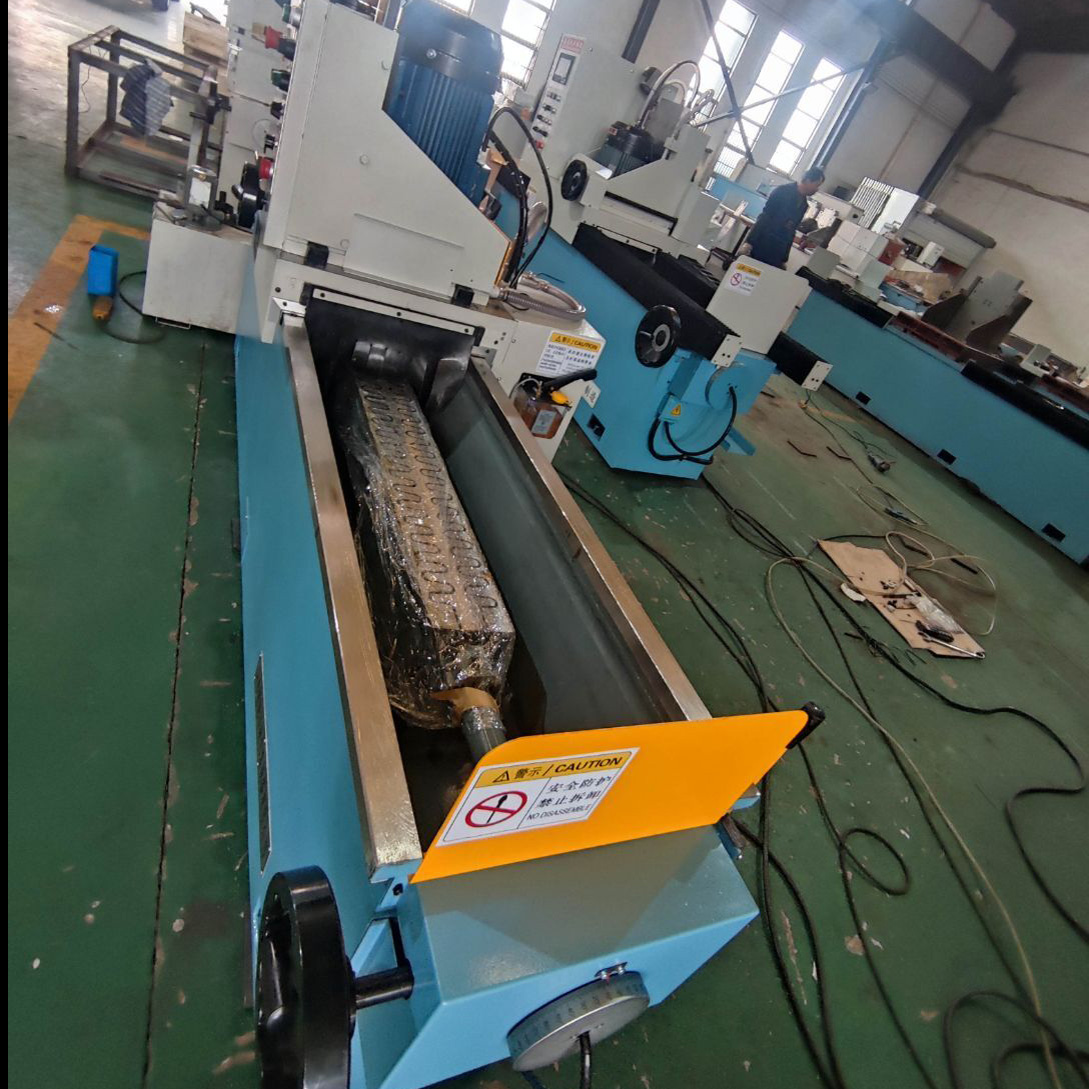

Brief Introduction of our Fully Automatic Linear Knife Sharpener

Our Fully Automatic Linear Knife Sharpener is a kind of Milling Grinding Machine Tool, our this type of machine is newly designed hard guide rail grinding machine. The guide rail is maintenance-free for life, silent and without resonance. High grinding precision, servo control, automatic feed, fast lifting. High cost performance, suitable for tooth blade and small straight blade, manufacturer and end-user.

Main technical parameters and specifications of our Fully Automatic Linear Knife Sharpener

1

Size Of The Magnet Table

Width*Length

130*1700mm( can be customized)

2

The Grinding Head Longitudinal Shift

Maximum Stroke

1900mm

Moving Speed

0-20m/Min

Maximum Size Of Working Piece

150mm

4

Main Grinding Head

Power

4Kw

Declination

±5°

Speed

1450rpm

6

Longitudinal Movement Motor

Power

1.0Kw

7

Rapid Rise And Fall Motor

Power

0.4Kw

Speed

1450rpm

Rapid Rise And Fall Speed

200mm/Min

8

Cooling Pump Of The Wheel

Lift

8m

Flux

100L/Min

9

Weight Of Machine

≈1000kg

10

Total Power Of Machine

6Kw

12

Work Environment Requirements

Power Supply

380V±10%（Ac Three-Phase）

50Hz

Temperature

5-35℃

Relative Humidity

＜85%

13

Size Of Machine

Length*Width*Height

2800*950*1500mm



Working precision:

1、Surface roughness of main grinding head ≤0.63µm

2、Straightness of the workpiece :  Total length ≤0.08

                                                                         Local length≤0.02/1000mm



Features of our Fully Automatic Linear Knife Sharpener

✅ Powerful Motor – Delivers fast, smooth grinding for all types of blades (knives, scissors, axes, and more).
✅ Adjustable Angle & Speed – Customize sharpening for perfect edges every time.
✅ Durable & Long-Lasting – High-quality abrasives and sturdy construction ensure years of reliable use.
✅ Safe & Easy to Use – User-friendly design with safety features for hassle-free operation.
✅ Versatile Compatibility – Works on metal, wood, and plastic blades.
