Single shaft shredder HT600 Series

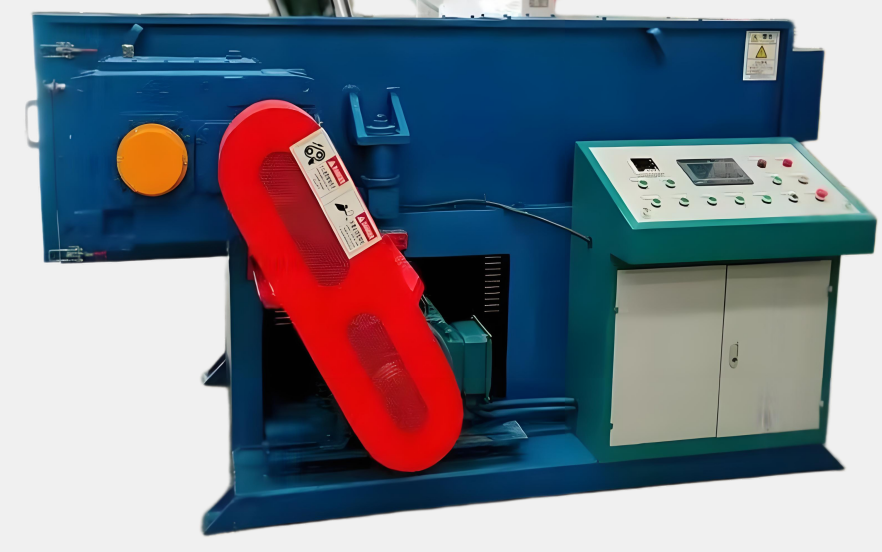

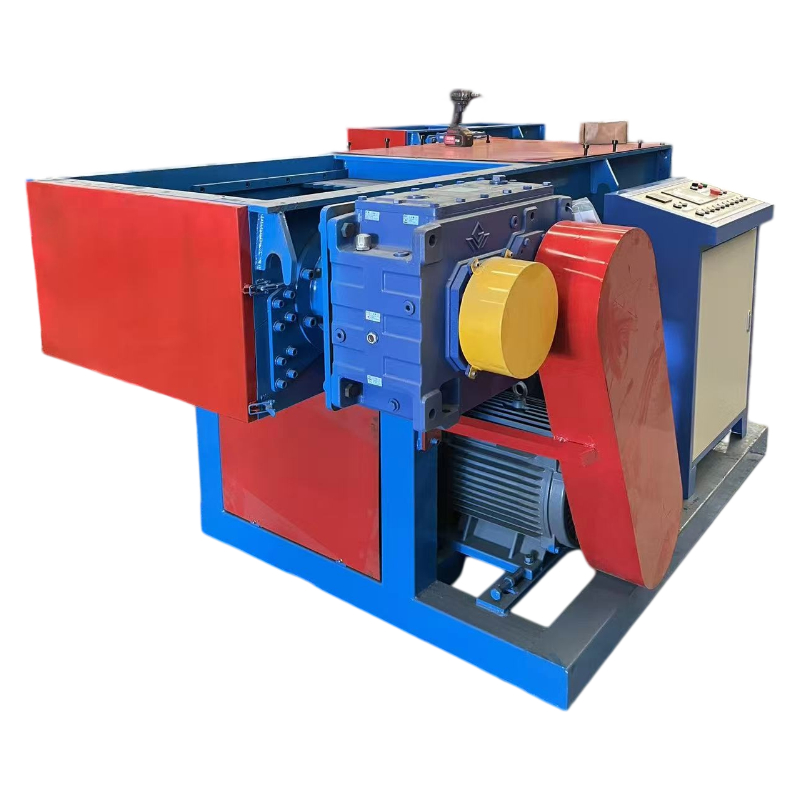

Product Introduction Of Our 600 Model Single Shaft Shredder

Huatao’s 600 model single shaft shredder is a compact, cost-effective industrial shredding solution tailor-made for small and medium-sized plastic recycling factories and injection molding workshops. It is professionally designed to process dual types of challenging materials, including rigid plastic head materials, hard plastic lumps, thick plastic leftover materials, and flexible materials such as ton bags, woven bags, and plastic films.

Adopting a mature single-shaft shear crushing structure and equipped with a hydraulic automatic feeding system, this machine effectively solves common problems of flexible material winding, slipping and hard material incomplete crushing in traditional shredding equipment. The machine features a standardized screen mesh design, with conventional discharge particle size adjustable between 2cm and 6cm.

Customers can replace screen meshes of different apertures according to subsequent production processes to obtain uniform and standard finished particles. In addition to standard configurations, the 600 model supports personalized customization based on customer-specific material characteristics and hourly output requirements, fully adapting to diversified small-batch and multi-type waste plastic shredding scenarios. With low power consumption, small floor space and stable operation, it is the preferred basic shredding equipment for early-stage plastic resource recovery.

Specification Of Our 600 Model Single Shaft Shredder

Core Advantages Of Our 600 Model Single Shaft Shredder

First, it has strong dual-material adaptability. Different from ordinary shredders that can only process single-type materials, the 600 model perfectly balances the shredding of rigid and flexible plastics. The high-hardness alloy rotor cutter adopts a spiral arrangement design, which generates powerful shear force to crush thick and hard plastic head materials, while the hydraulic push plate stably compacts flexible ton bags and films to avoid floating materials and winding shutdowns.

Second, the discharge precision is controllable. The detachable standard screen mesh realizes fixed-size crushing, ensuring consistent particle size of finished materials between 2-6cm, effectively improving the efficiency of subsequent plastic granulation and recycling processes.

Third, the operation and maintenance cost is low. The single-shaft simplified structure reduces failure points, and the independent replaceable blade design avoids overall tool replacement, greatly saving later maintenance and consumable costs.

Fourth, energy-saving and space-saving. The matched low-power high-torque motor reduces idle power consumption, and the compact body design occupies a small workshop area, which is friendly to small and medium-sized processing plants with limited site space.

Fifth, strong customization flexibility. The machine can adjust cutter speed, push material pressure and screen mesh specifications according to customer’s special materials and output standards, realizing targeted material shredding.

Application Scope Of Our 600 Model Single Shaft Shredder

This 600 model single shaft shredder is widely used in small and medium-sized plastic recycling industries, injection molding factory waste disposal, and industrial waste plastic resource recovery fields.

1. For rigid materials, it is suitable for all kinds of plastic head materials, plastic lumps, thick-wall plastic pipes, injection molding leftover materials, plastic pallet scraps and other hard waste plastics.

2. For flexible materials, it can efficiently shred ton bags, industrial woven bags, packaging plastic films, plastic canvas, soft plastic strips and other winding-prone lightweight materials.

3. It is widely matched with small plastic washing lines and granulation production lines, providing standardized particle raw materials for plastic secondary recycling.

4. It is also applicable for small-scale waste rubber, lightweight wood scraps and textile waste shredding, with extremely high comprehensive application value for small-batch and diversified waste material processing.

Any interesting, please contact us to get more details!
