PET (Polyethylene Terephthalate) bottle recycling line

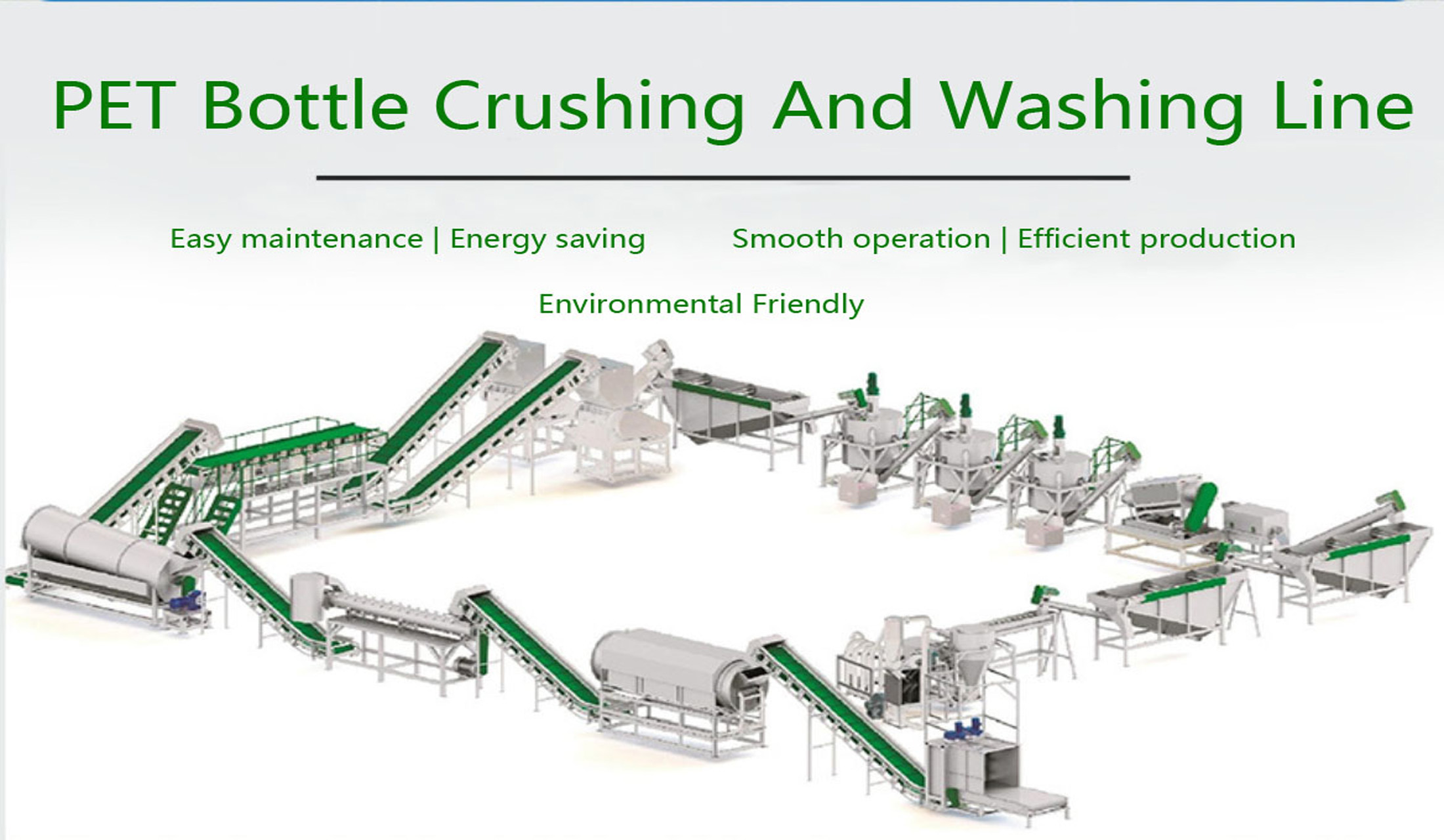

Introduction of our PET Bottle Recycling Line

PET (Polyethylene Terephthalate) bottle recycling is a critical process for reducing plastic waste and promoting a circular economy. A PET bottle recycling line involves several stages, including sorting, cleaning, shredding, washing, drying, and pelletizing, to transform used PET bottles into high-quality recycled PET (rPET) flakes or pellets. These recycled materials can then be used to produce new PET bottles, textiles, packaging, and other plastic products.

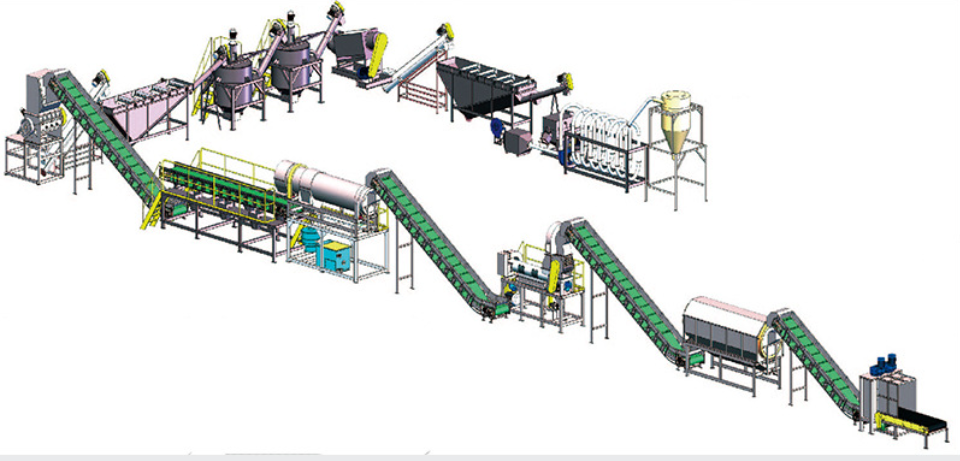

Key Equipment in a PET Bottle Recycling Line

1. Conveyor Belt – Transports PET bottles to different processing stages.

2. Sorting System (Manual/Automatic) – Removes non-PET materials (e.g., caps, labels, other plastics).

3. Baler (Optional) – Compresses collected PET bottles for easier storage and transportation.

4. Crusher – Breaks PET bottles into small flakes.

5. Label Remover (Air Separator)

 – Detaches and removes labels and caps through air separation.

6. Washing Line – Includes hot washing, friction washing, and chemical cleaning to remove contaminants.

7. Screw Feeder – Transports washed flakes to the next stage.

8. Dewatering Machine – Removes excess water from cleaned flakes.

9. Drying System (Hot Air Dryer or Centrifuge) – Ensures flakes are completely dry before further processing.

Our machine show

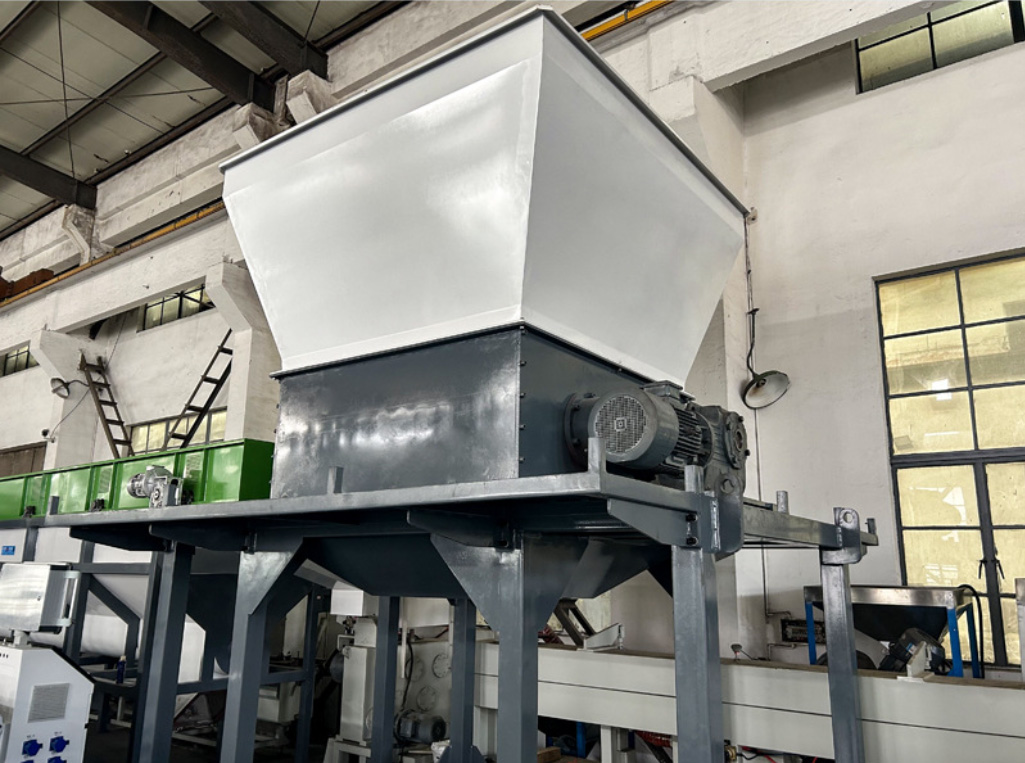

Unpacking machine

The motor is equipped with a matching reducer to reduce the load inertia of the motor and ensure the long-term normal operation of the motor

The frequency conversion material is used, and the unpacking rate can be adjusted to ensure the best unpacking rate. The unpacking speed is adjusted by the frequency converter

The unpacking roller material is made of manganese steel, heat-treated to make the material firm and durable.

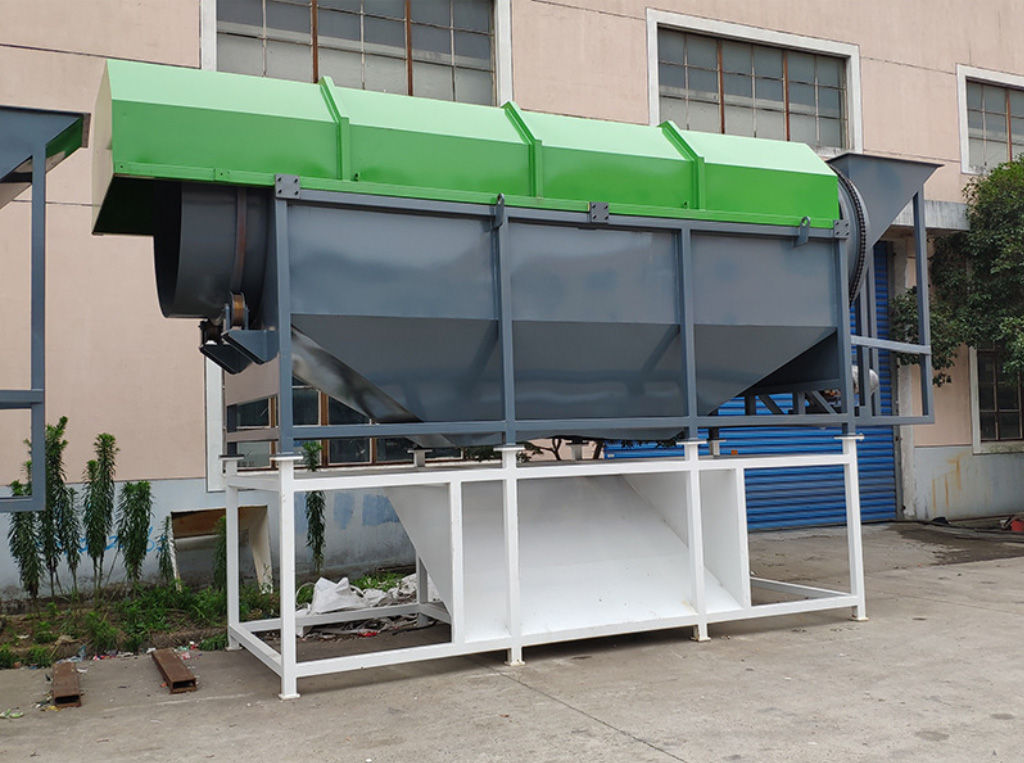

Drum screen

Our specially designed extruder is designed for different material screws

Compression ratio, aspect ratio, shearing, mixing, and exhaust will be designed in a targeted manner.

Spraying alloy treatment screw material is 38CrMoAIA, which greatly improves the service life

Label removal machine

The barrel is made of high-quality carbon steel, and the blade is made of high-speed tool steel (both sides can be interchanged)

Compressed bottle delabeling rate: 90% Round bottle delabeling rate: 98%

Equipped with an emergency start and stop device and an alarm device Delabeling machine equipment idling noise is less than 80db

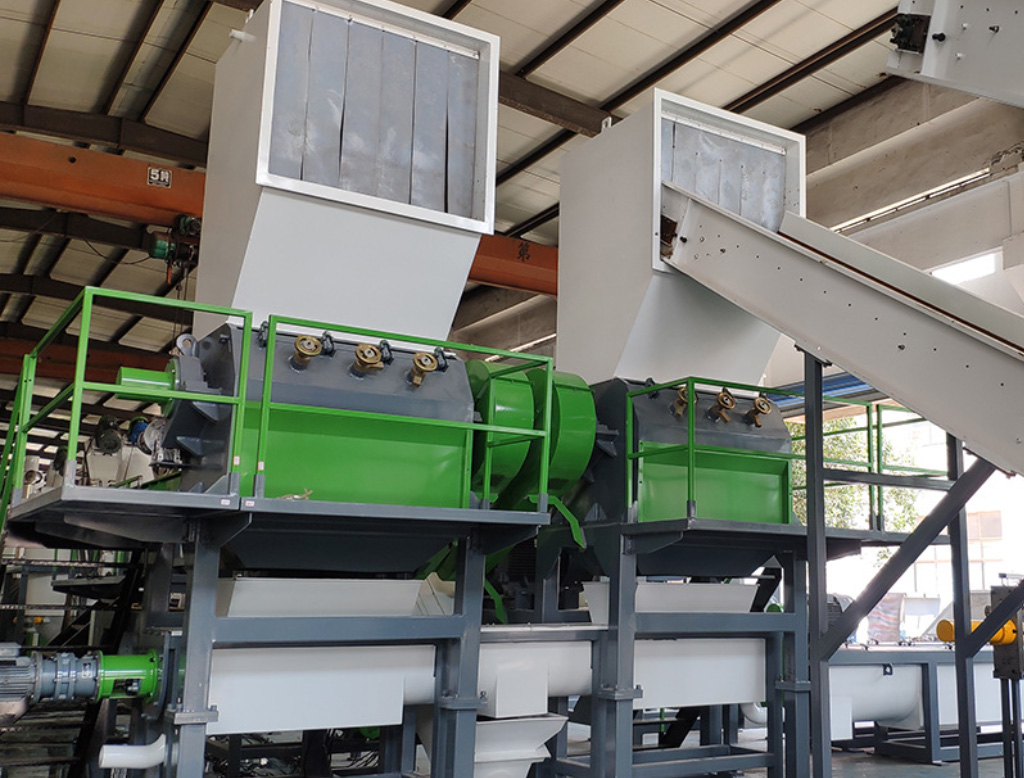

Crusher

Blade material: SKD-11V-type cutting technology reduces the wear of the tool and the crushing chamber and increases the life of the props

Using spherical roller bearings, the bearings are externally placed, and the heat dissipation is good

An optional enhanced flywheel to improve cutting strength

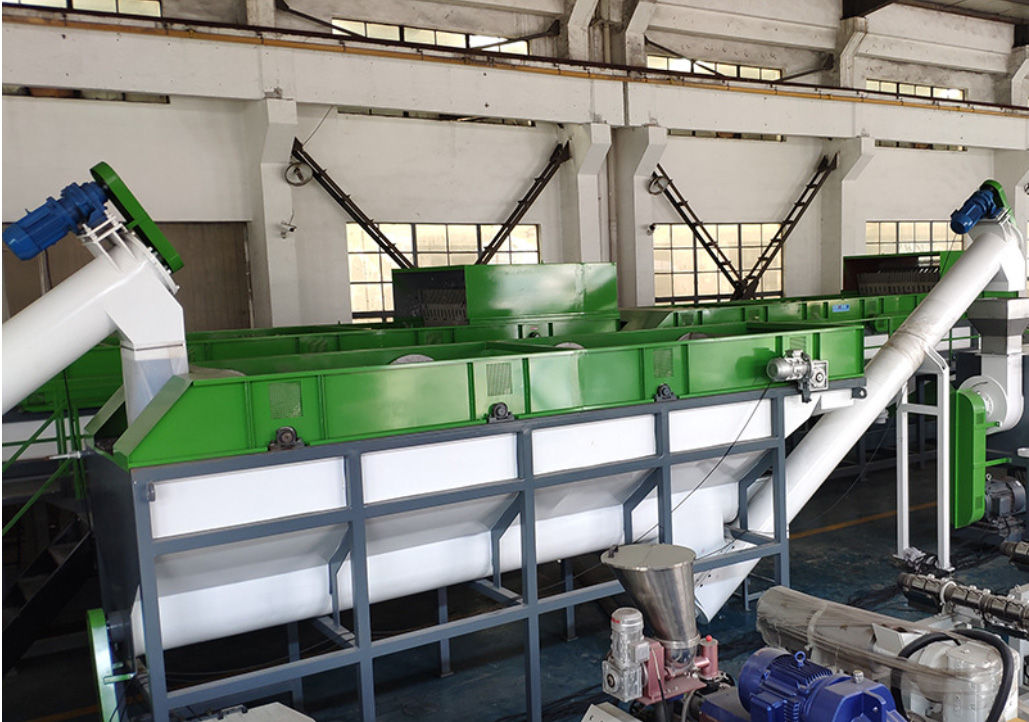

Cold water rinse tank

Preliminary rinse of PET bottle flakes and separation of bottle caps and some labels

Remove most impurities on PET bottle flakes and control bottle flake stains

Control the degree of contamination of the cleaning liquid by the high-temperature cleaning unit

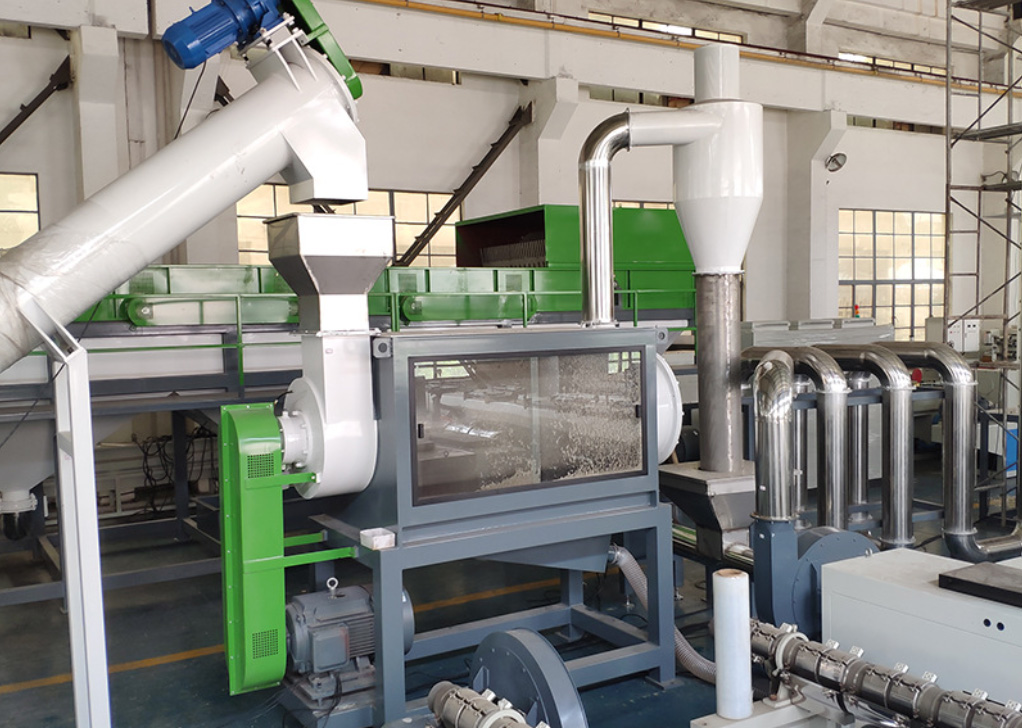

Horizontal dehydrator

Remove oil and other impurities to reduce moisture. The part in contact with water and materials is 304 stainless steel. Spindle rotation diameter: f650mm. Speed: 1500rpm. The dehydration rate is more than 90%.

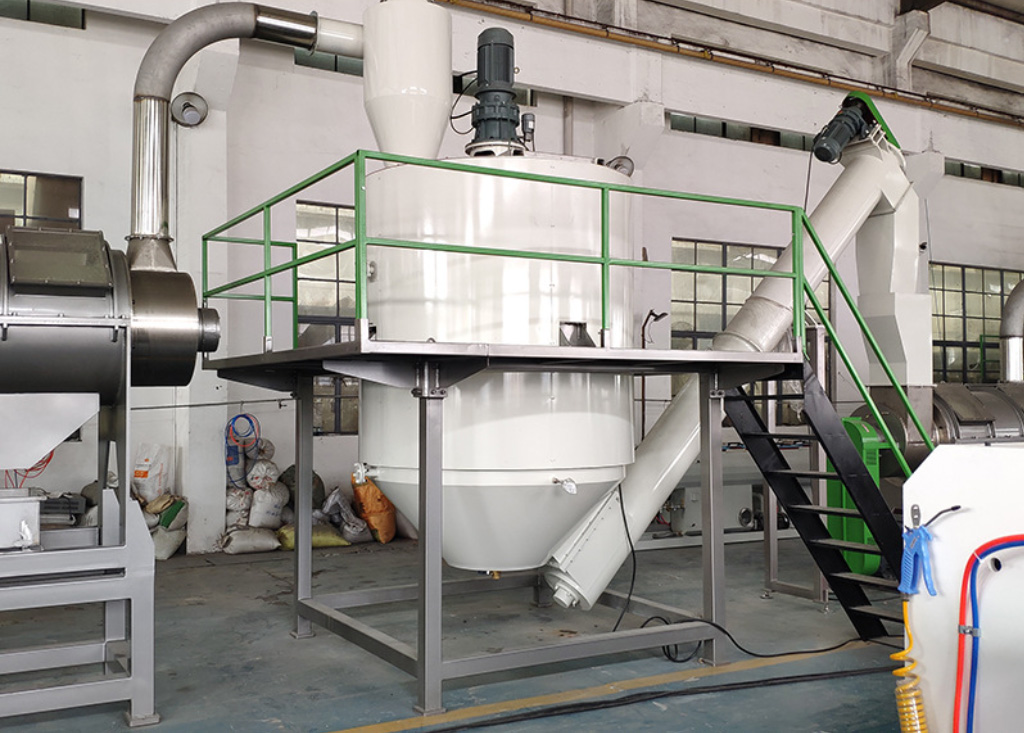

Hot washing tank

Remove oil and other impurities to separate adhesives. The part in contact with water and materials is 304 stainless steel. The bottom screen is separated by upper feeding and lower spiral lifting, so that the bottle flakes are soaked in water for 8-15 minutes.

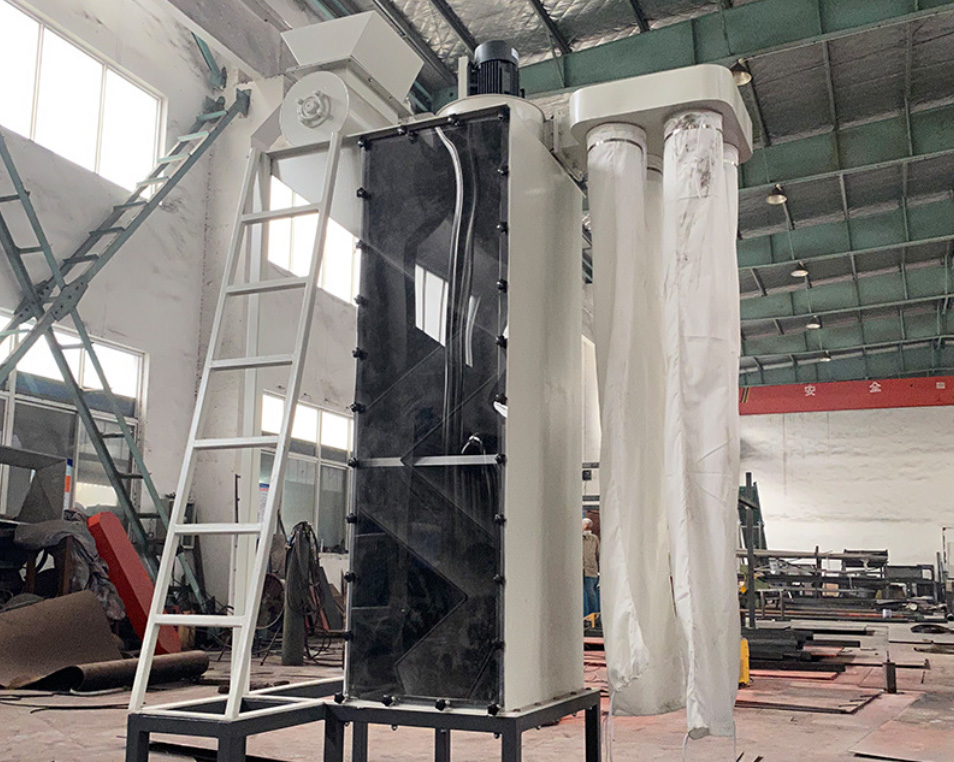

Label sorter

Remove oil and other impurities to reduce moisture. The part in contact with water and materials is 304 stainless steel. Spindle rotation diameter: ∮650mm. Speed: 1500rpm. The dehydration rate is more than 90%

Advantages of Our PET Bottle Recycling Line

✅ Environmental Benefits – Reduces plastic pollution and landfill waste.

✅ Energy & Cost Savings – Recycling PET consumes less energy than producing virgin PET.

✅ Circular Economy – Enables repeated recycling of PET materials.

✅ High-Quality Output – Produces clean rPET flakes/pellets suitable for food-grade applications.

✅ Economic Value – Recycled PET has strong market demand in the textile, packaging, and manufacturing industries.

✅ Automation & Efficiency – Modern recycling lines are highly automated, ensuring consistent output with minimal labor.

A well-designed PET bottle recycling line helps businesses and communities efficiently process plastic waste into valuable raw materials. By investing in advanced recycling technology, companies can contribute to sustainability while benefiting from the growing demand for recycled PET products.

Would you like more details on a specific part of the process?
