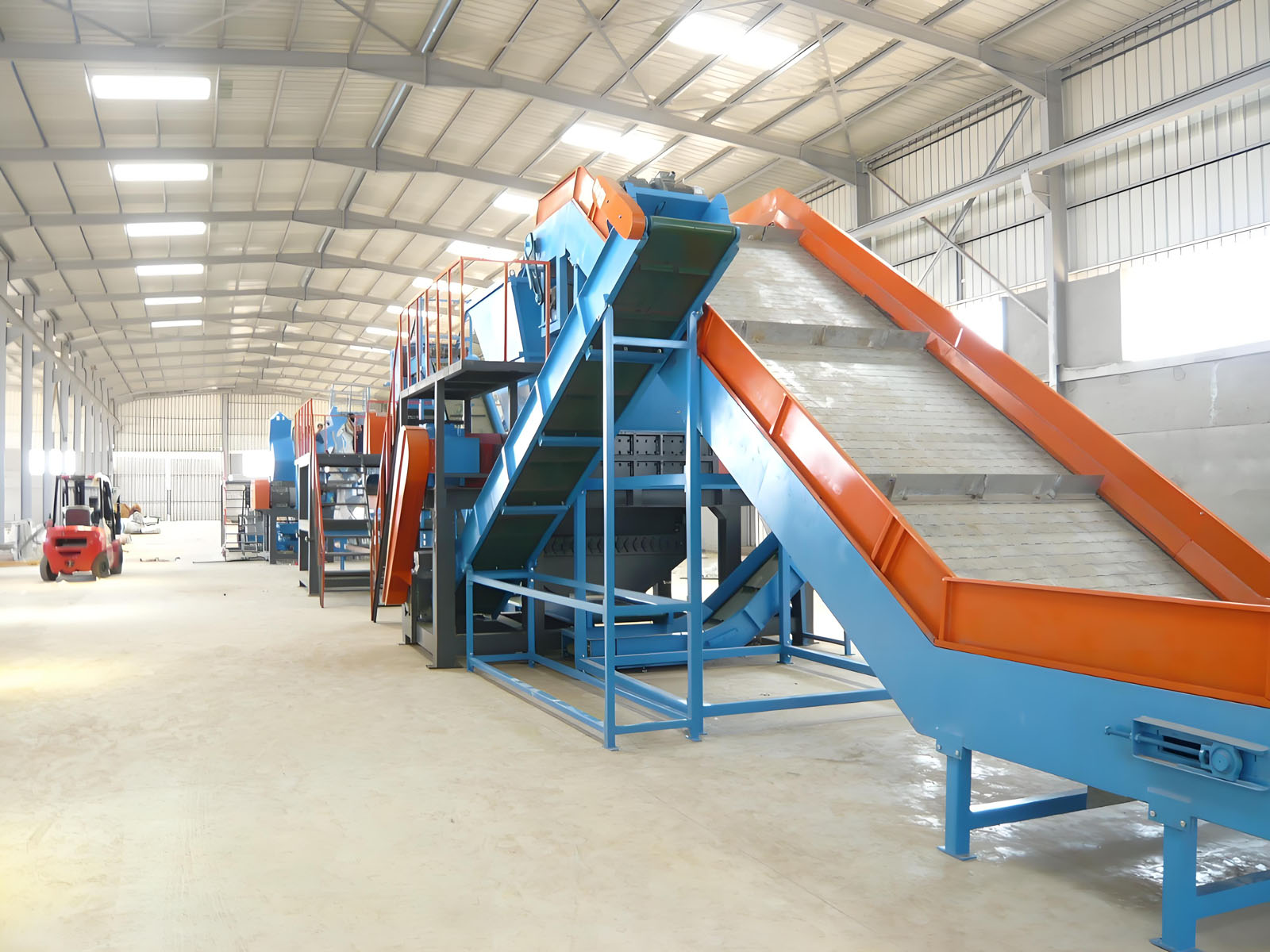

Waste Tire Crushing And Grinding Production Line

Introduction to our tire crushing and recycling production line:

Our this production line is suitable for car tire recycling, with professional low-speed high-torque shearing structure, synchronously realizing crushing and shredding functions;

Professional tool structure, ensuring efficient crushing of various materials and complex material composition;

Special design of professional assembly type fixed and movable knife combination installation, easy to disassemble and maintain;

Professional knife shaft design, using high-strength heavy-duty special steel processing and refinement into 6 ways, more reasonably cooperate with the tool to provide strong power for cutting;

Blades made of special imported materials, precision machining, multiple heat treatments and low-temperature freezing heat treatment technology, overall toughness and hardness, long service life;

Achieve intelligent control, determine the crushing strategy according to the characteristics of the material, the system has multiple intelligent protections such as mechanical and electrical, equipped with main motor start-up protection, automatic loosening feeding to prevent overload, motor stuck overload, automatic reversal and re-arrangement of materials to be crushed (the number of reversals is adjustable) When encountering hard objects that cannot be crushed, the equipment will automatically alarm and reverse, making it easy to remove the hard objects. Easy to operate;

Determine the thickness of the cutter and the shape and number of the cutter teeth according to the material characteristics and crushing requirements.

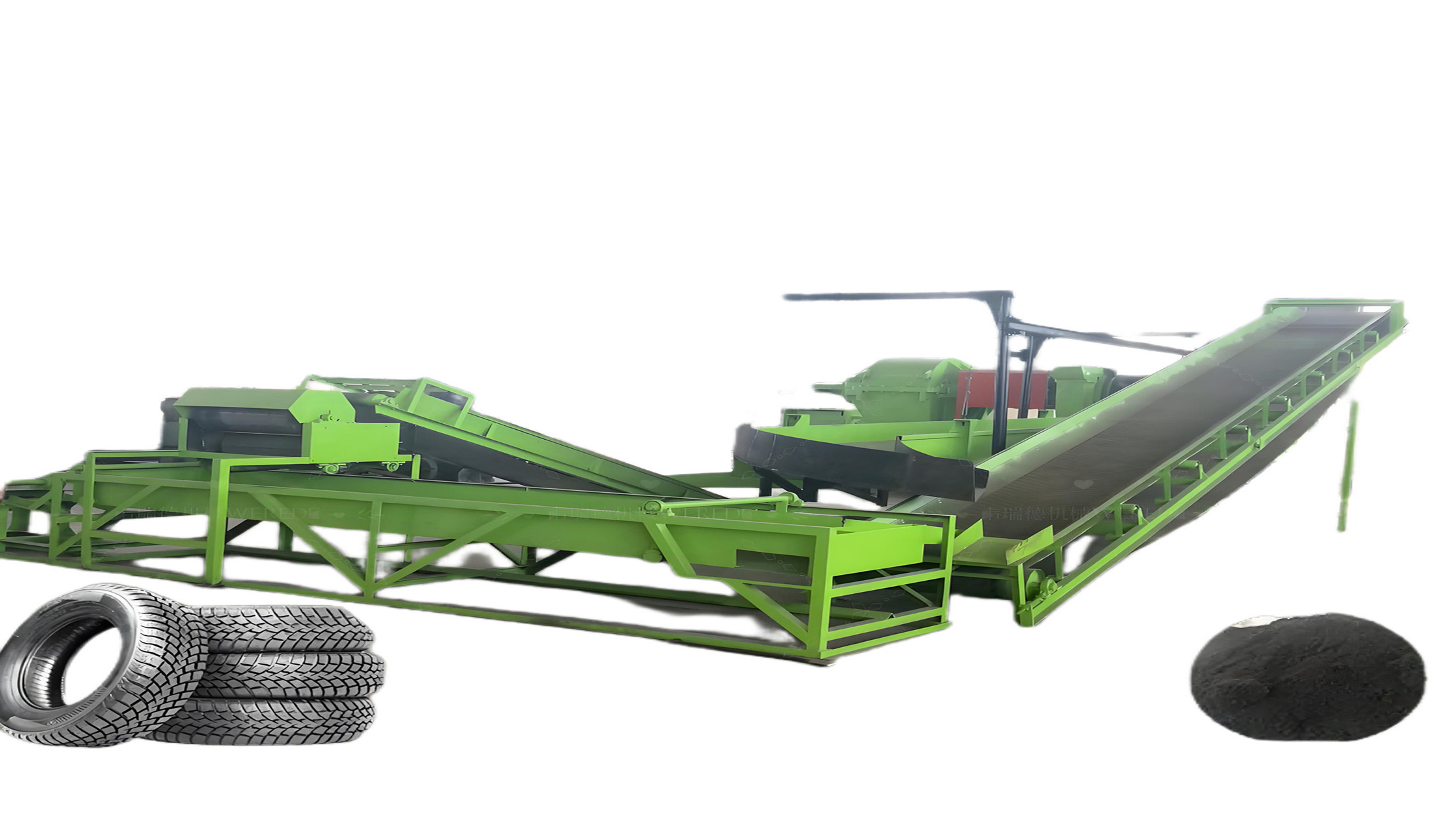

Product structure of the engineering tire crushing and recycling production line:

1. Fully automatic wire drawing machine: remove tire wire;

2. Conveying equipment: conveyor belt, screw conveyor and air pressure transmission system;

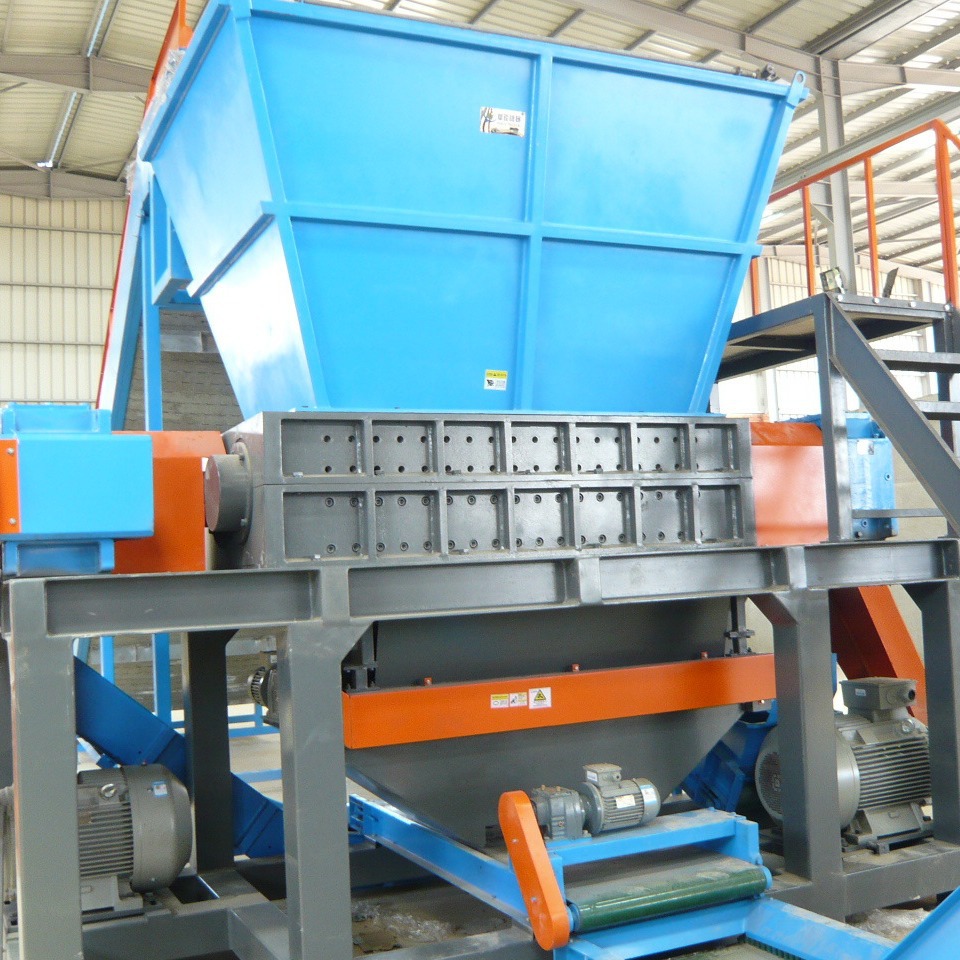

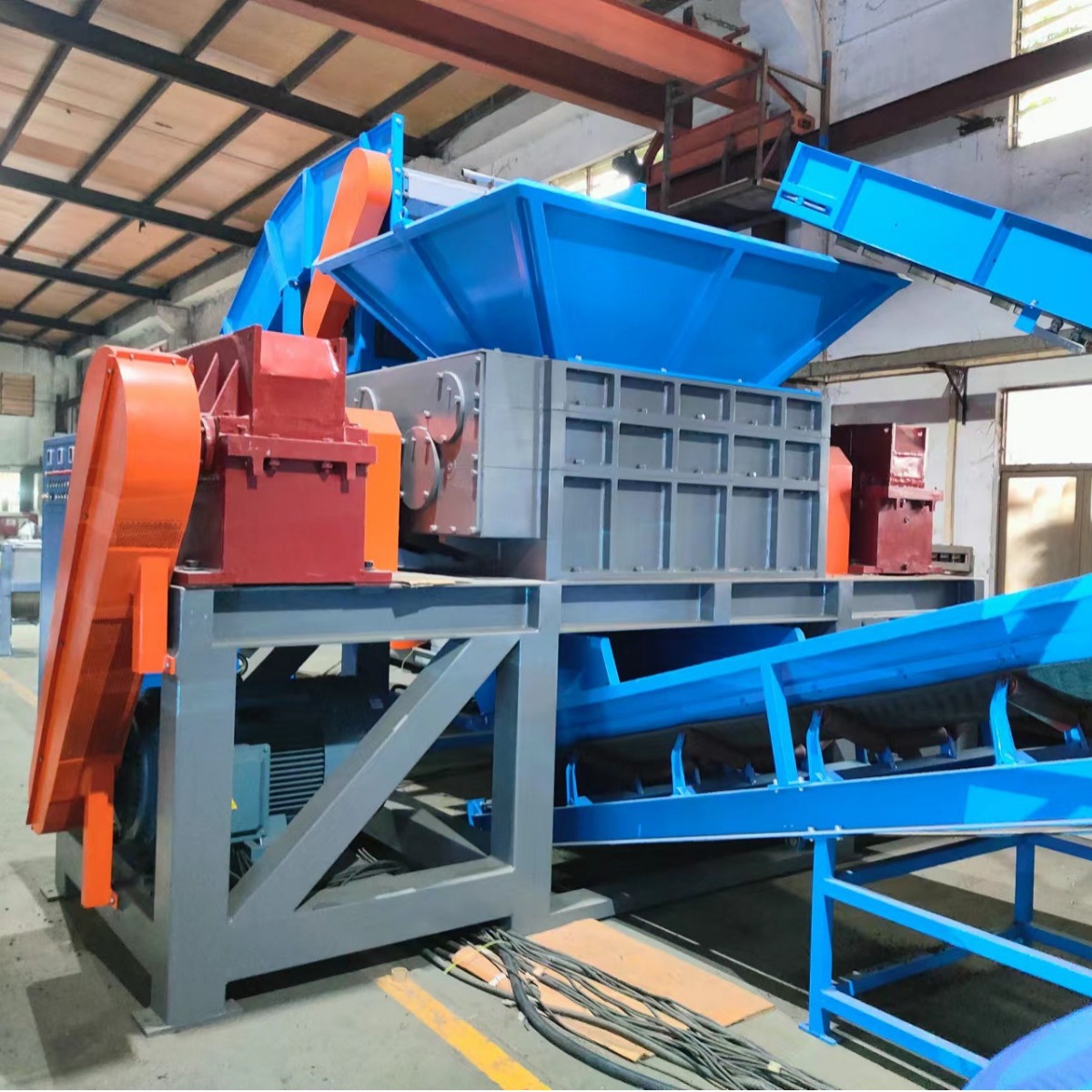

3. Shredder: initially process the tire into rubber sheets (50mm-150mm);

4. Steel wire separator: grind and press the rubber sheets to separate the rubber and steel wire, and process them into rubber particles (10mm-20mm);

5. Magnetic separator: sort steel wire from the rubber and steel wire mixture;

6. Crusher: crush the rubber particles to a smaller size (1mm-7mm);

7. Vibrating screen: sort rubber particles of different sizes, and send oversized particles back to the crusher for secondary powder;

8. Grinding machine: grind the particles into powder (30 mesh-100 =Mesh);

9. Fiber separator: remove foreign matter and fiber;

10. Automatic bagging system: load the finished product into storage bags or packaging bags.

Functional features of engineering tire crushing and recycling production line:

1. Direct feeding of the whole tire: no need to cut the tire lip wire equipment in advance, direct feeding;

2. From the whole tire to 1-7mm particles, a complete production line: no secondary handling intermediate link, from materials to finished product packaging;

3. 7 people can complete all on-site operations: 5000kg/h output, only 7 people are needed;

4. 200kg/h—5000kg/h different output equipment model configuration range: configure the equipment model according to the customer's output requirements, with a wide range;

5. 80-100 hours of feeding experiment before the single machine leaves the factory: insist on 80-100 hours of main machine feeding experiment before delivery Hours of experiment, stable performance;

6. Fully combined two-layer structure, full-link maintenance and replacement design: installation and maintenance structure design is safer;

7. Full-process dust and fume monitoring: seamless connection, collection and treatment of all escaped dust and fume;

8. Safety standards, process appearance, attention to detail process, unified standards.
