Engineering Excellence: Heavy-Duty Single-Shaft Shredders for Demanding Industrial Recycling Applications

Industrial recycling operations require equipment that delivers consistent performance under the most demanding conditions. The Single-Shaft Shredder has established itself as the benchmark for heavy-duty size reduction, combining robust construction with intelligent engineering to process challenging materials efficiently and reliably. With decades of proven performance, the Single-Shaft Shredder remains the defining technology for primary and secondary recycling applications worldwide.

Advanced Engineering Features:

The superiority of a modern Single-Shaft Shredder lies in its engineering excellence:

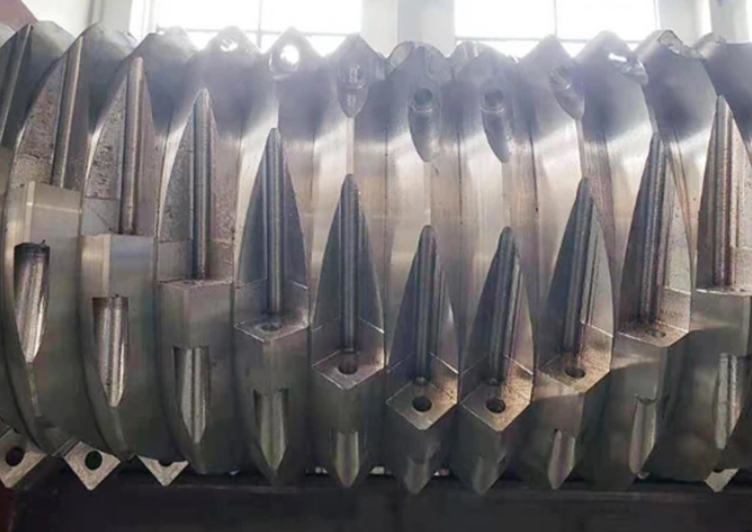

1 Rotor Design: High-performance Single-Shaft Shredders feature solid rotors with an aggressive feed geometry. The V-rotor design, for instance, ensures high throughput with low power consumption while accommodating reversible cutting blades that dramatically reduce maintenance costs . Rotor widths are available in various configurations, from compact 600mm units to massive 3,000mm+ systems for high-volume processing .

2 Cutting Technology: Blades are manufactured from premium tool steels such as D2, DC53, or H13, hardened to 62-64 HRC for exceptional wear resistance . The four-edged design allows each blade to be rotated multiple times before replacement, significantly extending service life . Adjustable counter-blades maintain optimal cutting geometry even as natural wear occurs, ensuring consistent performance and energy efficiency .

3 Hydraulic Feed System: The hydraulic pusher system provides controlled, load-dependent material feed that optimizes throughput and prevents blockages . Advanced systems include integrated shock valves that protect hydraulic cylinders from impact loads, ensuring long-term reliability .

4 Intelligent Control: PLC-based control systems with touchscreen interfaces monitor machine performance in real-time . Overload protection automatically reverses the rotor in critical situations, minimizing downtime and protecting the drive and cutting mechanism .

Meeting Demanding Applications

The Single-Shaft Shredder excels in processing challenging materials:

1 Plastic Production Waste: Injection molding purgings, extrusion scrap, and large plastic boulders are efficiently reduced, enabling immediate return to production processes . One application demonstrates shredding large PE boulders at a recycling plant, showcasing the machine's capability with heavy, dense materials .

2 Wood and Biomass Preparation: Pallets, timber offcuts, and board waste are transformed into uniform chips suitable for biomass boilers, briquette production, or board manufacturing . The screen-controlled discharge ensures consistent particle size critical for combustion and processing efficiency .

3 Alternative Fuel Production: In the production of refuse-derived fuel (RDF), the Single-Shaft Shredder plays a vital role in preparing high-calorific fractions from mixed waste streams . Single-stage shredding capabilities reduce equipment requirements and operational costs .

Maintenance and Operational Excellence

Modern Single-Shaft Shredders are designed with maintenance efficiency in mind:

Lift-Up Maintenance Systems: Allow easy access to the rotor and cutting chamber, reducing downtime for blade changes .

Sealed Bearing Designs: Protect bearings from dust and contaminants, extending service life and reducing unplanned maintenance .

Reversible Blades: Each blade can be turned multiple times as it wears, drastically reducing replacement costs .
