Maximizing Recycling Efficiency: The Critical Role of Single-Shaft Shredders in Modern Waste Processing

The global recycling industry faces unprecedented demands as waste volumes continue to rise and environmental regulations become increasingly stringent. At the heart of efficient recycling operations lies the Single-Shaft Shredder, a versatile and robust machine designed to process a wide range of materials with precision and reliability. Unlike multi-shaft alternatives, the Single-Shaft Shredder offers superior control over output size, making it the preferred choice for operations requiring consistent, high-quality recyclable material.

Understanding Single-Shaft Shredder Technology

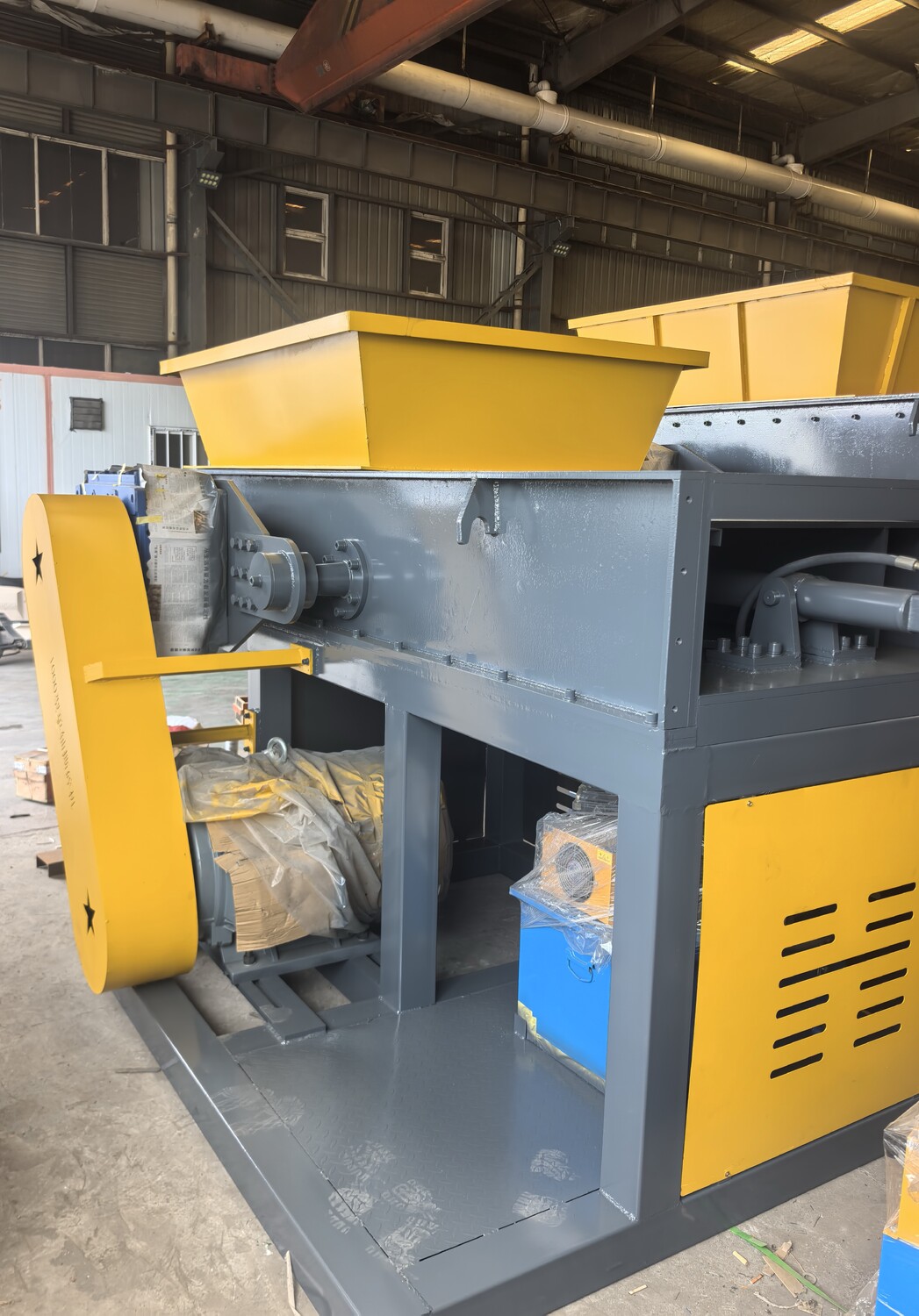

A Single-Shaft Shredder operates on a straightforward yet highly effective principle. Material is fed into a hopper, where a hydraulic pusher drives it toward a rotating rotor equipped with hardened cutting blades. The interaction between the rotating blades and fixed counter-blades tears, shears, and cuts the material until it passes through a screen that determines the final particle size . This low-speed, high-torque operation ensures efficient processing while minimizing dust, noise, and energy consumption.

Key components of the Single-Shaft Shredder include:

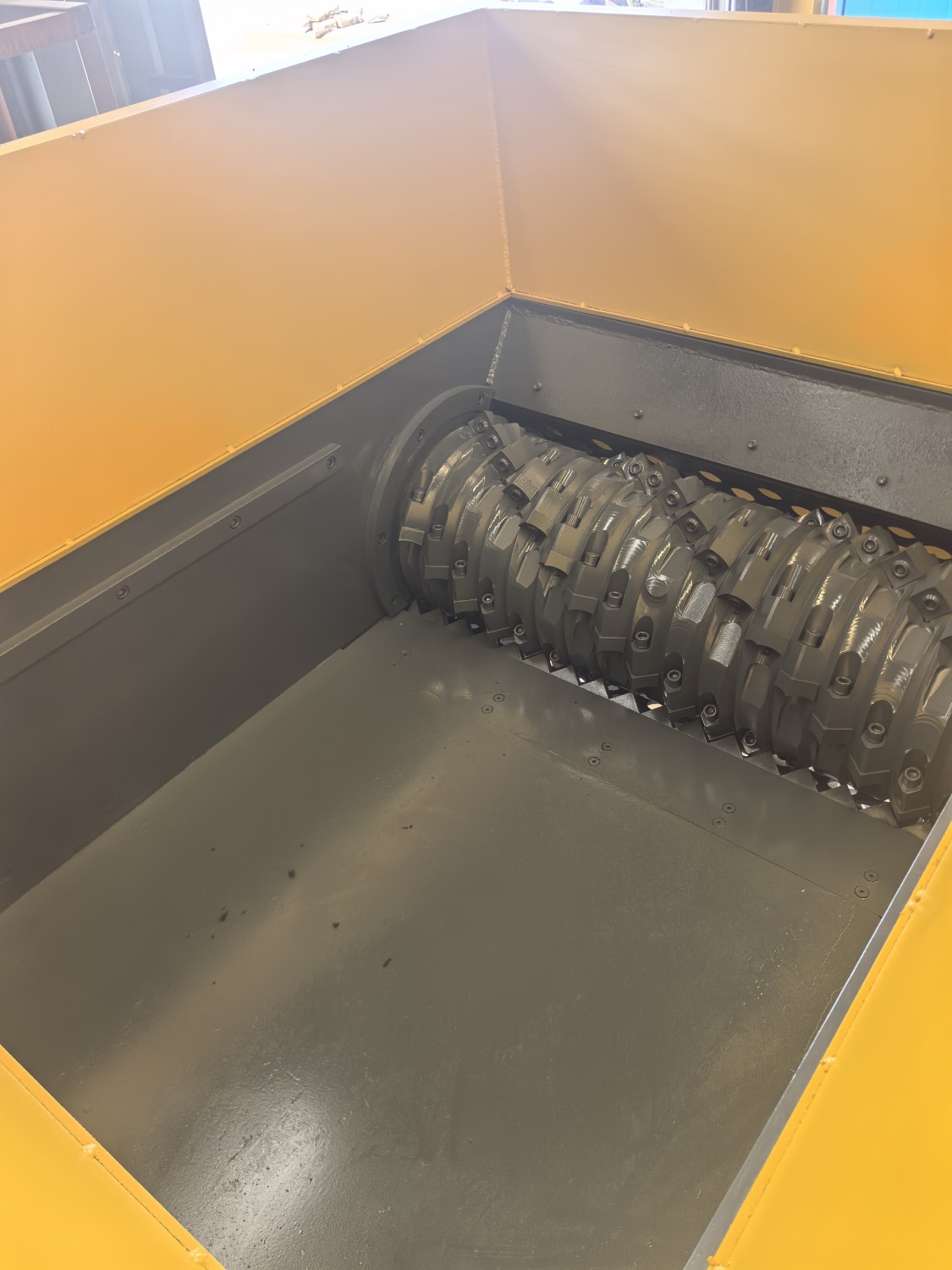

1 Rotor with Cutting Blades: The heart of the machine, typically constructed from solid material and fitted with reversible blades made from hardened tool steel such as D2 or DC53, offering exceptional wear resistance and extended service life .

2 Hydraulic Pusher System: Ensures consistent, controlled material feed, optimizing throughput and preventing blockages .

3 Interchangeable Screen: Allows operators to precisely control output size, typically ranging from 12mm to 80mm or more, depending on downstream requirements .

4 PLC Control System: Monitors machine performance, automatically reverses the rotor in case of overload, and protects against damage .

Versatile Applications in Recycling

The Single-Shaft Shredder is recognized for its exceptional versatility, processing a diverse range of materials across multiple industries:

1 Plastic Recycling: From HDPE pipes and large lumps to plastic films, purgings, and production scrap, the Single-Shaft Shredder handles it all . Its controlled cutting action produces uniform flakes ideal for washing, granulation, and pelletizing, enabling closed-loop recycling in manufacturing processes .

2 Wood Waste Processing: Pallets, timber offcuts, MDF, particleboard, and crates are efficiently reduced to consistent chips suitable for biomass fuel, mulch, or board-making feedstock . One example demonstrates processing up to 30 pallets per hour with a volume reduction of up to 75% .

3 Paper and Cardboard: Industrial paper waste, packaging materials, and confidential documents can be shredded into controlled fractions for recycling or energy recovery .

4 Electronic Waste and Cables: The Single-Shaft Shredder safely reduces electronic scrap, cable waste, and appliance housings, preparing them for downstream separation and material recovery.

Economic and Environmental Benefits：

1. Investing in a Single-Shaft Shredder delivers significant returns:

2. Reduced Disposal Costs: Volume reduction of up to 75% lowers transportation and landfill fees.

3. Revenue Generation: Shredded materials command higher market value as recycled feedstock or fuel.

4. Operational Efficiency: Low-speed, high-torque design reduces energy consumption and maintenance requirements.

5. Sustainability: Enables closed-loop recycling, reducing reliance on virgin materials and supporting circular economy goals.
