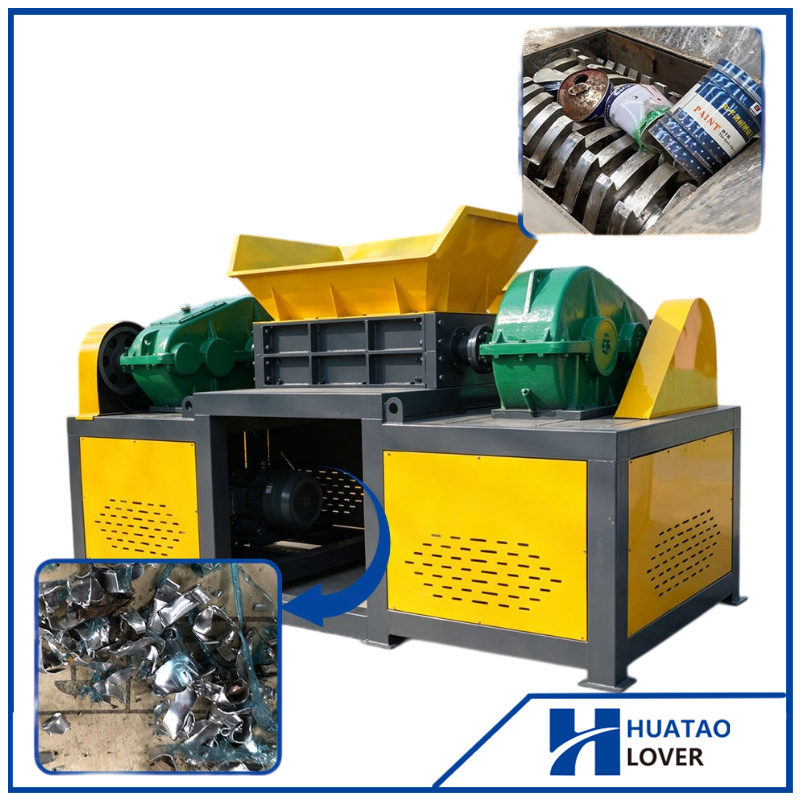

From Complex Feedstock to Recoverable Fractions: HUATAO Double Shaft Shredder in E-Waste Recycling

Electronic waste is among the most difficult feedstock in recycling. Circuit boards, appliance shells, cables, hard drives, printers, copiers, mobile phones and office equipment arrive mixed, bulky and often contaminated. These materials contain both metal and plastic, and they cannot be processed directly by separation equipment. The Double Shaft Shredder performs the liberation step at the primary size reduction stage, opening the material structure and preparing a homogeneous feed for downstream sorting, magnetic separation, eddy current separation and precious metal recovery. Without it, recovery rates fall and operating costs rise.

Where the Double Shaft Shredder Sits in the E-Waste Recycling Chain

An e-waste recycling line follows a predictable sequence: feedstock reception, primary size reduction, ferrous separation, non-ferrous separation, granulation and output handling. The Double Shaft Shredder operates at the primary size reduction stage, positioned immediately after feedstock reception and before any separation or fine-reduction equipment. Magnetic separators, eddy current separators and screening systems cannot function efficiently when fed whole appliances, complete cable bundles or intact circuit boards. The Double Shaft Shredder performs the liberation step, creating a homogeneous feed stream for the equipment that follows.

In a typical e-waste configuration, the Double Shaft Shredder reduces large electronic items to a manageable particle size. The pre-reduced material then passes to magnetic separation for ferrous removal, followed by Eddy Current Separator technology for aluminum and copper recovery, and finally to granulation or refining where required. Without primary shredding, magnets, screens and eddy current separators cannot function efficiently, and the recovery rate of valuable metals drops significantly.

Model Selection: Matching the Double Shaft Shredder to E-Waste Applications

Huatao manufactures the Double Shaft Shredder in several capacity tiers. The 600 Type Double Shaft Shredder is available for compact installations. The 800 Type Double Shaft Shredder is the entry point for moderate throughput. The 1000 Type Double Shaft Shredder provides a mid-range option, while the 1200 Type Double Shaft Shredder addresses higher-capacity requirements.

Model selection for e-waste applications should be driven by three factors: the maximum feed size the machine must accept, the required throughput in tonnes per hour, and the target output particle size. For e-waste, Huatao double shaft shredders can be configured with anti-winding shafts and customized blades to handle mixed materials containing cables and metal inserts. The PLC control system and automatic reverse function reduce jamming risk. For operations that require dust control and controlled output size, dust collection systems and screens can be integrated to build a complete Waste Recycling Production Line around the Double Shaft Shredder as the primary stage.

The Two-Stage Configuration: Double Shaft Shredder Plus Single Shaft Shredder

Many e-waste recycling operations achieve better results by combining two shredding technologies. A Single Shaft Shredder is frequently installed downstream of the Double Shaft Shredder to provide controlled secondary reduction. The Double Shaft Shredder handles the difficult work of gripping and tearing bulky, tangled or irregular material. Its counter-rotating shafts and high torque allow it to process feedstock that would stall a single-shaft machine. The Single Shaft Shredder then takes the pre-reduced material and applies controlled shearing against a fixed counter knife with a hydraulic pusher, producing consistent output through a screen.

Available Single Shaft Shredder models include the HT600 series, the 800 type, the HT 1000 type and the 1200 type. Each model is configured to accept pre-shredded material from the Double Shaft Shredder and reduce it to the particle size required by downstream separation equipment.

Maintenance and Operational Life in E-Waste Recycling

The Double Shaft Shredder is a high-wear machine by nature, and e-waste feedstock containing glass, ceramics and metal inserts accelerates blade wear. A structured maintenance programme covering daily visual inspection of the cutting chamber, hydraulic system checks and screen inspection will identify problems before they cause unplanned stoppages. Our twin shaft shredder maintenance guide sets out the recommended schedule in detail.

Blade condition is the single most important variable: dull blades increase energy consumption, reduce throughput and place additional load on bearings and drive components. Maintaining a Single Shaft Shredder Blade inventory and a sharpening schedule is essential. For operations that need to source replacement tooling, Huatao Wear Resistant Customization Shredder Blades are available in application-specific configurations for e-waste and cable processing.

Integration with Downstream Equipment

The output of the Double Shaft Shredder feeds directly into the separation stage of the e-waste recycling line. This means magnetic separation followed by Eddy Current Separator technology for non-ferrous recovery, and granulation for size control. For complete line design, a Waste Recycling Production Line can be configured around the Double Shaft Shredder as the primary stage, with all downstream equipment selected to match the shredder's output characteristics.
