The Single Shaft Shredder in Wood Waste Recycling: Engineering Efficient Size Reduction for the Biomass and Panel Industries

The global wood processing and recycling industry generates enormous volumes of waste material every year—pallets, crates, timber offcuts, construction formwork, demolition wood, and green waste from landscaping and forestry operations. Historically, much of this material was landfilled, burned, or downcycled into low-value applications. Today, however, wood waste is increasingly recognized as a valuable feedstock for biomass energy, panel manufacturing, mulch production, and compost bulking. At the center of this transformation is the Single Shaft Shredder, a machine engineered to reduce bulky, irregular wood waste into consistent, marketable chips.

Why Wood Waste Requires Specialized Shredding Technology

Wood waste presents a unique set of processing challenges that distinguish it from other recyclable materials. Unlike uniform industrial scrap, wood waste arrives in highly variable forms: long planks and pallets that resist feeding, tangled branches and brush that wrap around rotating components, and contaminated loads containing nails, screws, staples, and concrete residue. These characteristics make wood waste difficult to process with high-speed impact grinders, which are prone to jamming, excessive wear, and fire risk when processing such materials.

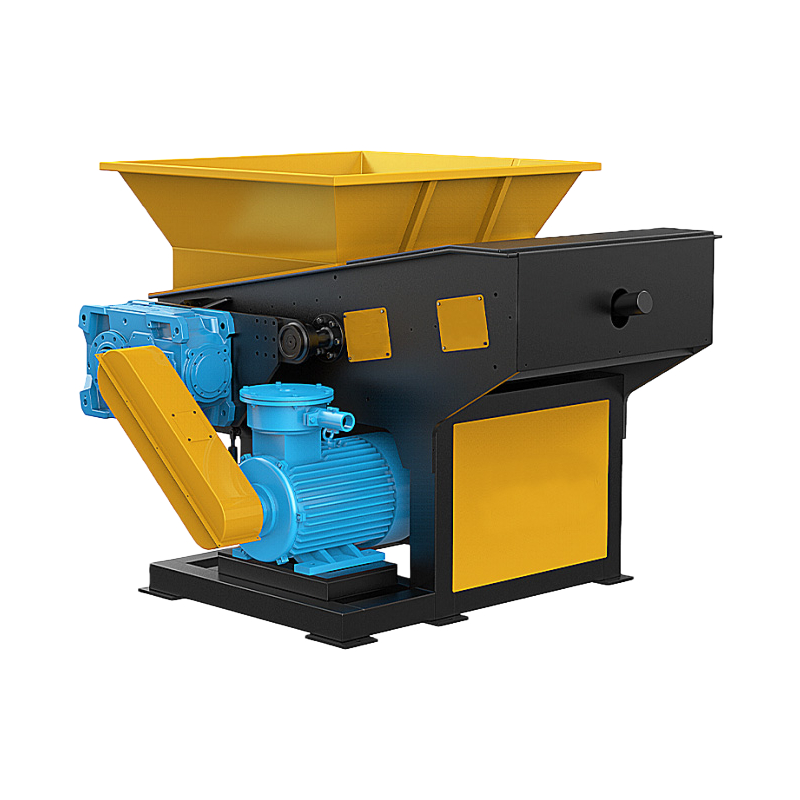

The Single Shaft Shredder addresses these challenges through its fundamental design philosophy: low speed, high torque. Rather than relying on high-speed impact to break material apart, the Single Shaft Shredder uses a single rotating rotor equipped with hardened cutting blades that work against a fixed counter knife. A hydraulic pusher system feeds material into the cutting chamber at a controlled rate, allowing the machine to grip and shear even long, unwieldy timber without the violent impact forces that generate sparks and heat.

The Technical Advantages of the Single Shaft Shredder for Wood Processing

The Single Shaft Shredder offers several technical advantages specifically relevant to wood waste processing. The low rotational speed—typically between 10 and 40 RPM—significantly reduces the risk of fire, a critical safety consideration when processing dry wood and biomass. The high torque delivered by the hydraulic drive enables the Single Shaft Shredder to shear through dense hardwoods, pallet blocks, and timber with embedded metal contaminants without stalling.

The hydraulic pusher system of the Single Shaft Shredder is another key advantage. By continuously feeding material into the cutting chamber at a controlled rate, the pusher prevents the bridging and blockages that commonly occur when processing long planks and irregular timber. The pusher force can be adjusted to match the material being processed, optimizing throughput while protecting the machine from overload.

The output size of the Single Shaft Shredder is controlled by interchangeable screens positioned below the rotor. By selecting the appropriate screen aperture—typically ranging from 20 mm to 100 mm—operators can produce wood chips tailored to specific downstream applications. Biomass fuel requires a consistent chip size for efficient combustion, while mulch production may require a coarser, more textured output.

Integration of the Single Shaft Shredder into Wood Recycling Lines

In a complete wood recycling operation, the Single Shaft Shredder typically serves as the primary size reduction stage. Pallets, crates, and timber waste are loaded into the feed hopper, where the hydraulic pusher moves them toward the rotor. The rotating blades shear the material into smaller pieces, which fall through the screen and onto a discharge conveyor.

Following primary shredding, the material passes through magnetic separation to remove ferrous contaminants such as nails, screws, and staples. This step is critical for protecting downstream equipment and ensuring the quality of the final wood chip product. Screening then classifies the material by size, separating fines from usable chips and recirculating oversize material back to the Single Shaft Shredder for further reduction.

The processed wood chips can then be directed to various end uses: biomass boilers, pellet mills, particleboard manufacturing, or landscaping applications. The consistency of the output from the Single Shaft Shredder directly influences the efficiency of these downstream processes, making proper machine configuration essential.
