The Single Shaft Shredder in PET Bottle Recycling: Preparing Flake for Food-Grade Applications

PET bottle recycling is the highest-value segment of the plastic recycling industry. Food-grade rPET commands premium prices, and the technical requirements for producing it are correspondingly demanding. Contamination must be controlled to levels measured in parts per million. Intrinsic viscosity must be maintained within narrow limits. Particle size must be consistent to ensure efficient washing and decontamination.

The Single Shaft Shredder plays a specific role in this process. It reduces the size of PET bottles, preparing them for washing and decontamination. Its performance affects the efficiency of every downstream stage and the final product quality.

The PET Recycling Process

PET bottle recycling follows a defined sequence. Bottles are collected, sorted by colour and polymer type, and baled for transport. At the recycling facility, bales are opened and bottles are fed to a size reduction stage. The reduced material is washed to remove labels, adhesives, and organic residues. It is then dried, decontaminated, and either sold as flake or pelletized for use in new bottles and other applications.

The Single Shaft Shredder performs the size reduction stage. It reduces whole bottles to flake of a consistent particle size, preparing the material for washing.

Why Particle Size Consistency Matters in PET Recycling

Particle size consistency is critical in PET recycling for several reasons.

Washing Efficiency. Washing systems are designed to process flake within a specific size range. Material that is too coarse may not be adequately cleaned. Material that is too fine may be lost in the washing process or may cause drainage problems.

Decontamination. Food-grade PET recycling requires decontamination to remove any substances that may have migrated into the polymer. The efficiency of decontamination depends on the surface area of the flake, which is a function of particle size.

Intrinsic Viscosity. Intrinsic viscosity is a measure of the polymer's molecular weight and determines its mechanical properties. Excessive heat or shear during size reduction can reduce intrinsic viscosity. The Single Shaft Shredder operates at low speed, minimising the thermal and mechanical stress on the polymer.

Downstream Processing. Consistent flake size improves the efficiency of downstream processes, including extrusion and pelletizing.

How the Single Shaft Shredder Prepares PET Flake

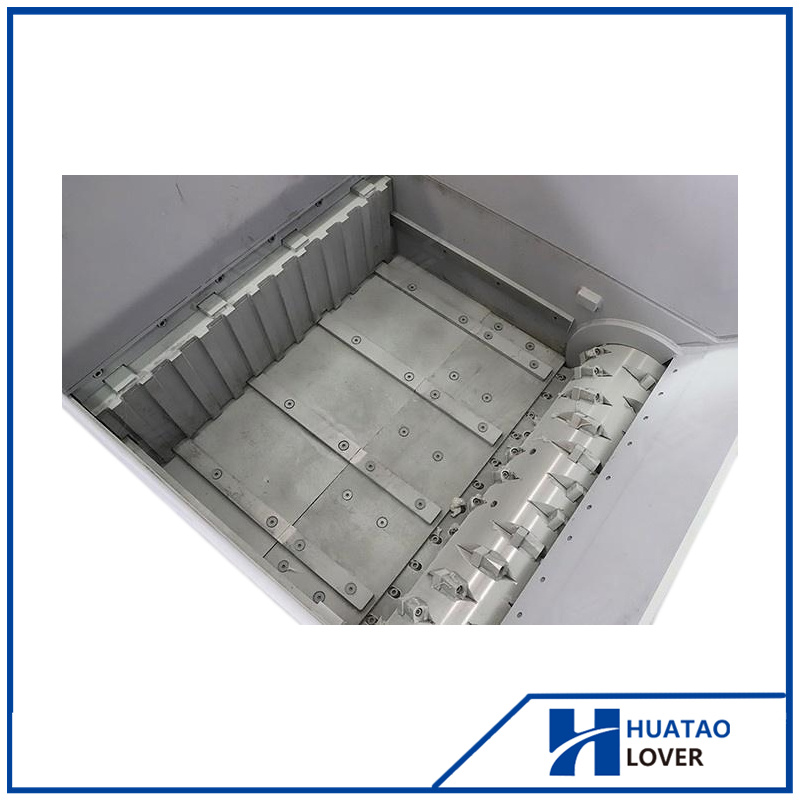

The Single Shaft Shredder reduces PET bottles through controlled shearing. A single rotor, fitted with hardened cutting blades, works against a fixed counter knife. A hydraulic pusher advances bottles into the cutting chamber at a controlled rate.

The screen beneath the rotor determines the output particle size. For PET bottle recycling, screen apertures are typically selected to produce flake in the range required by the washing system. The Single Shaft Shredder allows this selection to be adjusted, giving operators control over output size.

The low rotational speed of the Single Shaft Shredder, typically 10 to 40 RPM, minimises heat generation and mechanical stress. This is important for PET, which is sensitive to both thermal degradation and mechanical stress.

Contamination Control

PET bottle recycling involves contamination that must be managed carefully. Labels, adhesives, caps, and closures are common contaminants. Some of these are removed before size reduction; others are addressed in the washing stage.

The Single Shaft Shredder contributes to contamination control by producing a consistent flake size that washing systems can process effectively. It also tolerates the presence of caps and labels, which are liberated during size reduction and removed downstream.

An Eddy Current Separator may be used in PET recycling lines to remove non-ferrous metal contamination. Technical background is available in Efficient Plastic Non Ferrous Metal Sorting For Waste Recycling Lines.

Model Selection for PET Applications

Huatao manufactures the Single Shaft Shredder in configurations suited to PET bottle recycling. The Single Shaft Shredder HT600 Series suits smaller operations. The Single Shaft Shredder 800 Type addresses mid-range requirements. The Single Shaft Shredder HT 1000 Type and Single Shaft Shredder 1200 Type serve higher throughput applications. Full specifications are on the Single Shaft Shredder page.

Integration with PET Recycling Lines

The Single Shaft Shredder is typically the primary size reduction stage in a PET recycling line. It is followed by washing, drying, and decontamination stages. A Plastic Granulator Machine may be used for final size reduction before pelletizing.

For complete PET line configurations, see PET Polyethylene Terephthalate Bottle Recycling Line. General line architecture is described in Engineering A Closed Loop Future The Technical Architecture Of The Waste Plastic Recycling Line and Optimizing Recovery Configuring The Waste Plastic Recycling Line For Complex Feedstocks.

Application guidance is available in Professional Plastic Container Crusher Small Bottle And Plastic Frame Crushing Machine, High Efficiency Crusher For Daily Rigid Plastic Waste Recycling, and Pp And Pe Plastic Granulators For Waste Plastic Woven Bag Recycling.

Blade Maintenance in PET Processing

Blade condition affects both throughput and output quality. Dull blades produce a wider particle size distribution and generate more fines, which can be lost in washing and reduce yield. Regular inspection and sharpening maintain performance.

An Industrial Knife Grinding Machine restores blade geometry. Guidance is available in Focus On Plastic Recycling Industry Solve Frequent Blade Sharpening Pain Points, How To Choose The Right Plastic Crusher Blades Skd11 D2 Dc53 And Ld, and Optimizing Shredder Blade Usage A Comprehensive Guide To Efficiency And Longevity.
