The Double Shaft Shredder in Tyre Recycling: The Primary Stage That Determines Recovery Economics

Tyre recycling begins with a problem that is physical rather than chemical. A whole tyre is an engineered assembly: a rubber carcass, steel bead wire, steel belts, textile reinforcement, and a tread compound designed to resist abrasion for tens of thousands of kilometres. Recovering the rubber, steel, and textile from that assembly requires breaking it apart. And the machine that performs the first, most difficult step in that process is the Double Shaft Shredder.

Why Tyres Require a Dedicated Primary Shredder：

Tyres are among the most difficult materials in any recycling stream. They are large, heavy, and flexible. They contain steel reinforcement that resists cutting and damages conventional blades. They are shaped in ways that make them difficult to feed into machinery. And they arrive in sizes ranging from passenger car tyres to massive OTR (off-the-road) tyres used in mining and construction.

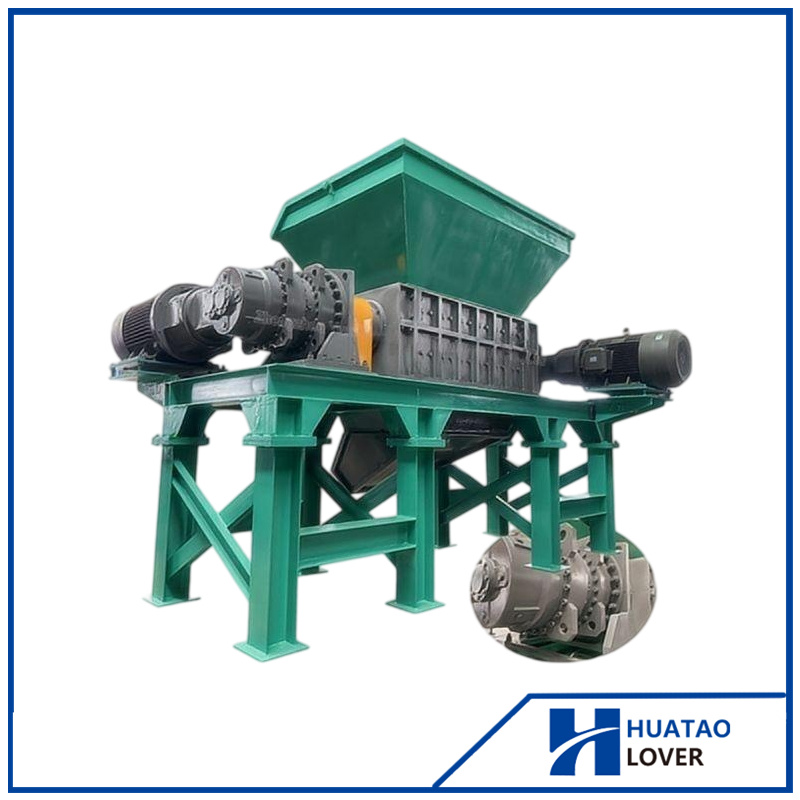

The Double Shaft Shredder is designed for exactly this challenge. Two counter-rotating shafts, fitted with hardened cutting blades, grip the tyre and tear it apart through shear. There is no high-speed impact involved — the shafts rotate slowly, typically in the range of 10 to 40 RPM, but deliver substantial torque through planetary gear reducers. This low-speed, high-torque approach allows the Double Shaft Shredder to process whole tyres that would stall or damage other equipment.

The distinction between shear and impact matters more than it might appear. Impact-based shredders rely on a single high-energy strike to break material apart. When that strike meets the flexible, energy-absorbing structure of a tyre, the result is unpredictable: the tyre may deform rather than break, the blade may bounce off, or the machine may stall entirely. The Double Shaft Shredder applies sustained tearing force instead. The counter-rotating shafts grip the tyre and pull it into the cutting chamber, where the blades progressively shear through the rubber and steel until the material yields. The result is a more complete liberation across the full range of materials present in a tyre.

What the Double Shaft Shredder Produces？

The output of the Double Shaft Shredder in a tyre recycling line is tyre chips — typically in the range of 50 to 150 mm. These chips are not the final product. They are the feedstock for the next stage of the process.

The purpose of primary shredding is liberation. The Double Shaft Shredder breaks the mechanical connections between the rubber, the steel bead wire, and the steel belts. Once these connections are broken, downstream equipment can separate the materials. Without effective primary shredding, the steel remains embedded in the rubber and cannot be recovered efficiently.

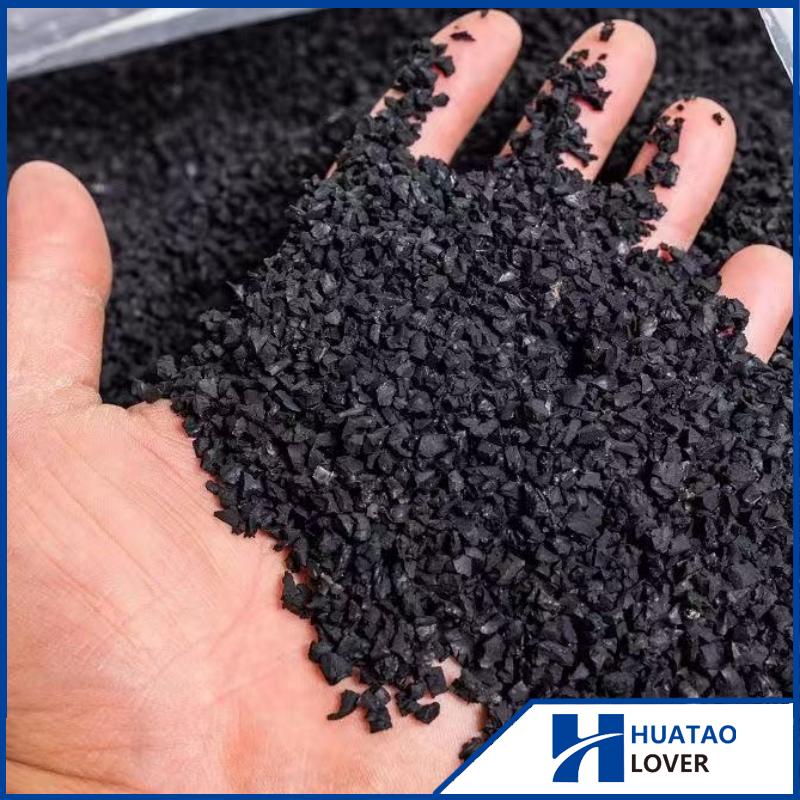

The chips produced by the Double Shaft Shredder then proceed to steel liberation and magnetic separation, where the steel wire is removed, and to granulation, where the rubber is reduced to crumb or powder. The uniformity of the chips matters here. If the Double Shaft Shredder produces a wide particle size distribution — some large chunks, some fines — the downstream magnetic separator and granulator must compensate for that variability. A consistent chip size allows downstream equipment to operate at its design efficiency.

Model Selection for Tyre Applications：

Huatao manufactures the Double Shaft Shredder in several capacity tiers suited to different tyre processing scales. The 800 Type Double Shaft Shredder suits mid-range operations. The 1000 Type Double Shaft Shredder addresses growing facilities, while the 1200 Type Double Shaft Shredder handles higher capacity requirements. A 600 Type Double Shaft Shredder is available for compact installations. Full specifications are on the Double Shaft Shredder Machine page.

Selection is driven by the maximum tyre size the machine must accept, the required throughput in tonnes per hour, and the target chip size for downstream processing. OTR tyre processing requires larger feed openings and higher torque than passenger car tyre processing. A facility processing passenger car tyres has different requirements from one processing mining tyres that may exceed two metres in diameter.

Integration with the Complete Tyre Recycling Line

The Double Shaft Shredder is the first stage in a complete tyre recycling line. Its output feeds directly into the downstream equipment that recovers steel and produces rubber crumb.

For complete line configurations, see The Complete Tire Recycling Line Engineering A Sustainable Future For End Of Life Tyres and Waste Tire Crushing And Grinding Production Line.

The shredded chips from the Double Shaft Shredder pass through magnetic separation to remove steel, then to granulation equipment. A Single Shaft Shredder may be used for secondary reduction where a finer particle size is required before granulation.

Maintenance Considerations in Tyre Service

The Double Shaft Shredder operates in a high-wear environment when processing tyres. Steel bead wire and steel belts are abrasive, and the shock loads from unshreddable inclusions can damage blades and shafts.

A structured maintenance programme is essential. The Twin Shaft Shredder Maintenance Guide Extend Service Life Cut Operational Cost covers the recommended schedule. Blade condition is the variable that matters most — dull blades increase energy consumption, reduce throughput, and produce inconsistent chip size.

Replacement blades are available as Huatao Wear Resistant Customization Shredder Blades, and an Industrial Knife Grinding Machine restores blades to specification.

For guidance on tyre processing specifically, see Do You Know How To Process With Waste Tires and Unlocking Value From Waste Double Shaft Shredders Driving The Circular Economy In Tire Recycling.

Conclusion：

The Double Shaft Shredder is the first machine in any tyre recycling line and the one that determines whether the rest of the process can operate efficiently. Its low-speed, high-torque shearing action liberates rubber, steel, and textile from the engineered assembly of a whole tyre, producing chips that downstream equipment can process.

For tyre recyclers seeking to maximise recovery and minimise downtime, the Double Shaft Shredder is not an optional component. It is the foundation of the entire operation.
