The HUATAO Hydraulic Baling Machine in Cardboard and Paper Recycling: Engineering Density for Logistics Efficiency

Corrugated cardboard and mixed paper represent one of the highest-volume waste streams in industrial and commercial operations. Managing this material efficiently is not merely an environmental obligation but a logistics and cost-control challenge. Loose cardboard occupies substantial floor space, commands low prices from recyclers, and incurs disproportionate transport costs due to its low bulk density. The HUATAO Hydraulic Baling Machine addresses each of these problems directly by compressing loose paper waste into dense, uniform bales that reduce storage requirements dramatically and improve loading efficiency for transport.

Understanding the HUATAO Hydraulic Baling Machine Operating Principle：

The HUATAO Hydraulic Baling Machine operates through a hydraulic compression system that applies force to loose material within a confined chamber. The core components include the hydraulic cylinder, motor and oil tank, high-pressure pump, and control valve assembly. Material is introduced into the compression chamber — either manually, by conveyor, or through an automated feeding system — and the hydraulic ram advances to compress it against the chamber walls.

Once the material reaches a predetermined compression force or stroke position, the baling cycle pauses while the bale is secured with strapping wire or cord. The bale is then ejected, either through a door at the chamber end or by a pusher mechanism. This sequence repeats continuously, allowing the HUATAO Hydraulic Baling Machine to process material at throughput rates ranging from 1 ton per hour in compact models to over 13 tons per hour in high-capacity configurations.

The compression itself is not merely a matter of force. Bale quality depends on the relationship between press force, chamber geometry, and the material's behaviour under pressure. Corrugated board compresses readily but has a tendency to spring back if the bale is not adequately secured. Plastic film is more elastic still. The HUATAO Hydraulic Baling Machine is configured to match the material it processes, not simply to deliver maximum force.

Horizontal vs. Vertical Configurations：

The HUATAO Hydraulic Baling Machine is available in two primary orientations, each suited to different operational scales and space constraints.

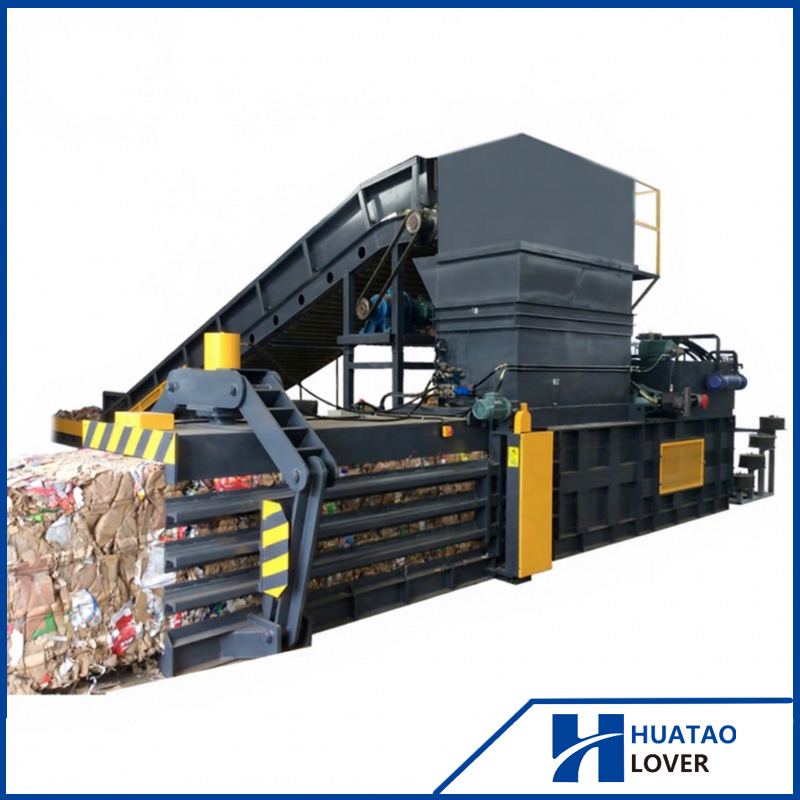

Horizontal balers are engineered for high-volume, continuous operation. These machines are typically specified for material recovery facilities, paper mills, large distribution warehouses, and printing operations where daily cardboard volumes justify automation. Horizontal HUATAO Hydraulic Baling Machine models offer press forces from 30 to 200 tons, with motor power ranging from 11 kW to 110 kW depending on throughput requirements. Bale weights for cardboard typically range from 40 kg in compact models to over 1,300 kg in high-capacity configurations.

Vertical balers are the appropriate choice for smaller operations with limited floor space. These HUATAO Hydraulic Baling Machine units are compact, simpler to operate, and require lower initial investment. They are commonly deployed in retail locations, supermarkets, and small manufacturing facilities where cardboard waste is generated consistently but at lower volumes.

The distinction matters for specification. A vertical HUATAO Hydraulic Baling Machine in a supermarket back room and a horizontal HUATAO Hydraulic Baling Machine in a distribution centre perform the same basic function, but they are engineered for entirely different duty cycles, labour models, and throughput requirements.

Key Selection Criteria for the HUATAO Hydraulic Baling Machine：

Specifying the correct HUATAO Hydraulic Baling Machine requires assessment of several operational parameters.

Throughput Requirement. The volume of material the HUATAO Hydraulic Baling Machine must process per hour determines the required chamber size, motor power, and press force. A facility generating 2 tons of cardboard per day has different requirements from one generating 20 tons per shift.

Bale Dimensions and Weight. Bale size affects downstream handling. Standard bale dimensions facilitate stacking, transport, and sale to paper mills. The HUATAO Hydraulic Baling Machine can be configured with adjustable bale lengths, and some models offer customizable bale sizes to match specific logistics requirements.

Automation Level. Manual, semi-automatic, and fully automatic HUATAO Hydraulic Baling Machine configurations are available. Fully automatic models incorporate PLC control with touchscreen interfaces, automatic feeding, and automatic tying systems, reducing labour requirements and enabling integration into automated sorting and conveying lines. German-engineered automatic tying technology is a feature of several high-end HUATAO Hydraulic Baling Machine models, using high-tensile quenched steel wire for secure bale formation.

Binding System. Steel wire, plastic strapping, and cord are all options. The binding system must be matched to the bale density and the handling conditions the bale will experience. High-density cardboard bales typically require high-tensile steel wire.

Operational Efficiency and Cost Recovery：

The economic case for the HUATAO Hydraulic Baling Machine is straightforward. Compressing cardboard into dense bales reduces transport costs by maximizing payload per truck, improves storage efficiency by reclaiming floor space, and produces a standardized commodity that commands better prices from paper mills and recyclers. Bales that are consistently formed and securely tied resist breakage during handling, reducing material loss and maintaining the value of the output.

Modern HUATAO Hydraulic Baling Machine designs also incorporate energy-saving hydraulic systems with fast cycle times. Some models achieve empty cycle times of 15 seconds or less, contributing to higher overall throughput without proportional increases in energy consumption.

There is also a safety dimension. Loose stockpiles of cardboard and paper present a serious fire hazard. Dense bales produced by a HUATAO Hydraulic Baling Machine are far less combustible because they lack the surface area and airflow that allow loose material to burn rapidly. Many insurance providers recognize this difference in their risk assessments.

Maintenance and Long-Term Reliability：

The HUATAO Hydraulic Baling Machine is a high-cycle machine. In a typical operation, it may complete hundreds of compression cycles per shift, subjecting its hydraulic system, chamber walls, and tying mechanisms to continuous mechanical stress. A structured maintenance programme is essential for reliable operation.

Daily checks should include hydraulic fluid level and leak inspection, bale chamber inspection, and tying system verification. Weekly and monthly tasks include hydraulic fluid condition checks, filter replacement, ram alignment inspection, and lubrication. Over the longer term, wear liners and hydraulic seals require replacement.

Detailed guidance is available in How To Maintain A Hydraulic Baler Expert Tips To Extend Service Life Cut Downtime.

Conclusion：

The HUATAO Hydraulic Baling Machine is not merely a waste handling accessory. It is the machine that converts a low-density disposal problem into a standardized, transportable commodity. For paper and cardboard recycling operations, it determines transport economics, storage efficiency, and the marketability of the output.
